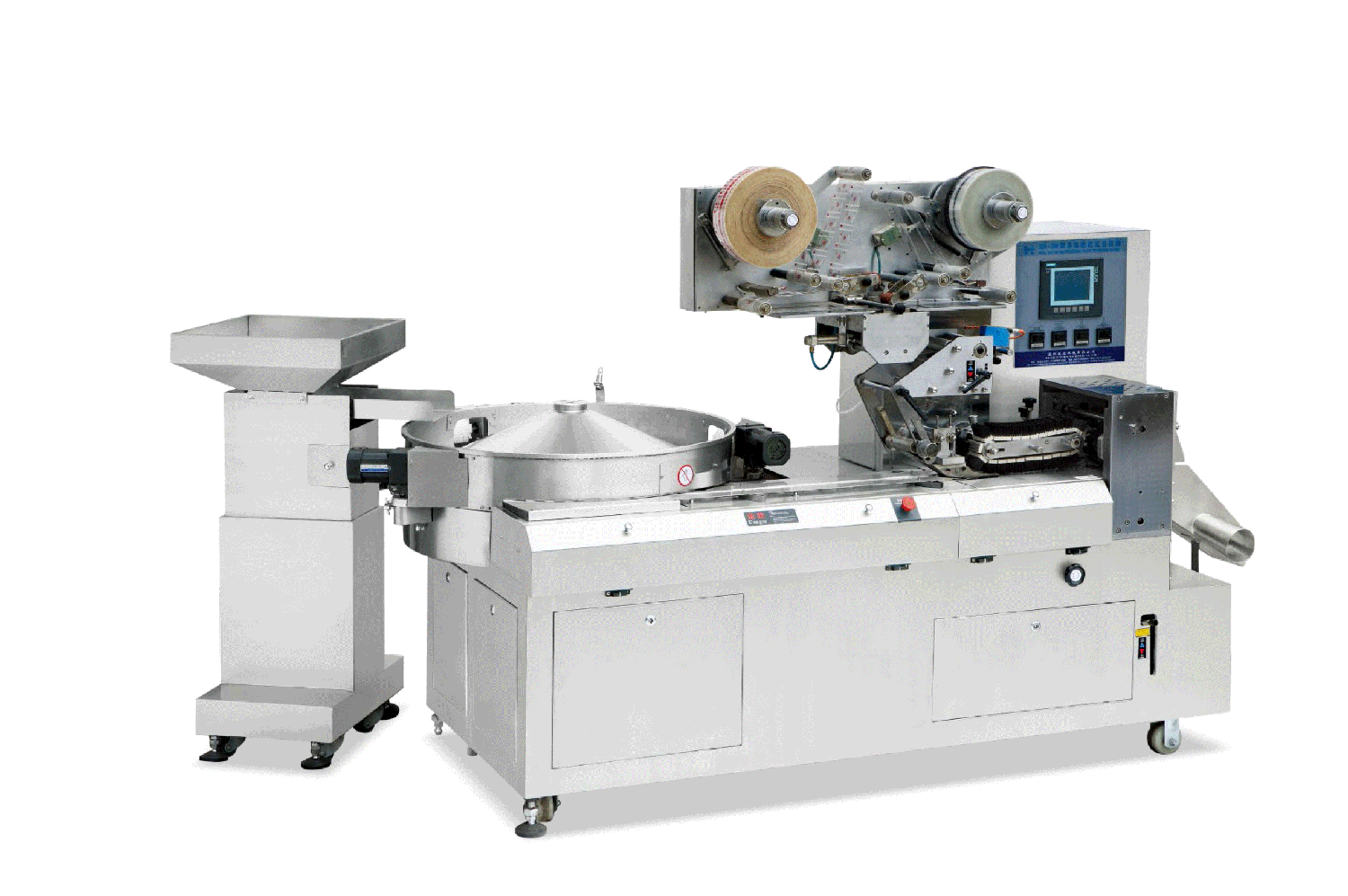

DXD-1200糖果枕式包裝機

詳情

USE用途

包裝機型號：DXD-1200糖果枕式包裝機

It is used for packing single piece or multi-piece candies，lollpop and similar products.

用于包裝單粒、多粒糖果、棒棒糖等或者類似產品。

自動糖果顆粒枕式包裝機屬于自動包裝設備，該機采用不銹鋼制材，既又衛生。包裝機能儲存10種不同產品的包裝工藝參數，當更換產品時可隨時使用無須重新設定，并且可自動完成計量、送料、充填制袋、日期打印、充氣（排氣）、成品輸送的部包裝過程，并自動完成計數。

The automatic pillow packing machine for candy granules belongs to automatic packaging equipment. The machine is made of stainless steel and is sanitary. This machine can store the packaging process parameters of 10 kinds of different products, and can be used at any time when changing products. It can automatically complete the process of measurement, feeding, filling and bag making, date printing, inflation (exhaust) and finished product transportation, and automatically complete the counting.

MAIN TECHNICAL PARAMETERS包裝機主要技術參數

DXD-1200

Max. Capacity

Packing Spec.

z大生產能力

包裝物規格

1200粒/分

長（Length）12-40mm 寬（Width）12-30mm高（Height）5-18mm

Length of Finished bag

成形袋長

50-80mm

Gross Power

Overall Dimensions

總功率

外形尺寸

4kW

2500×1350×1720mm

Gross Weight

Power Supply

總重量

電源

1400kg

220V 50H

Packing Material

包裝材料

OPP、CPP、PET鍍鋁膜、鋁塑膜、紙塑、紙膠等單層多層等可熱封材料

建議使用外層PET厚度0.013mm,內層CPP厚度0.023～0.027mm ,復合低溫膜

OPP、CPP、PET Metallized film，Al-plastic film，Paper-rubber complex

Suggest to used wrapping film with material of PET13/CPP23-27

Note: We can design and manufacture according to customer's special needs. 注：用戶如有特殊規格，本公司可另行設計制造.
